PRODUCTS

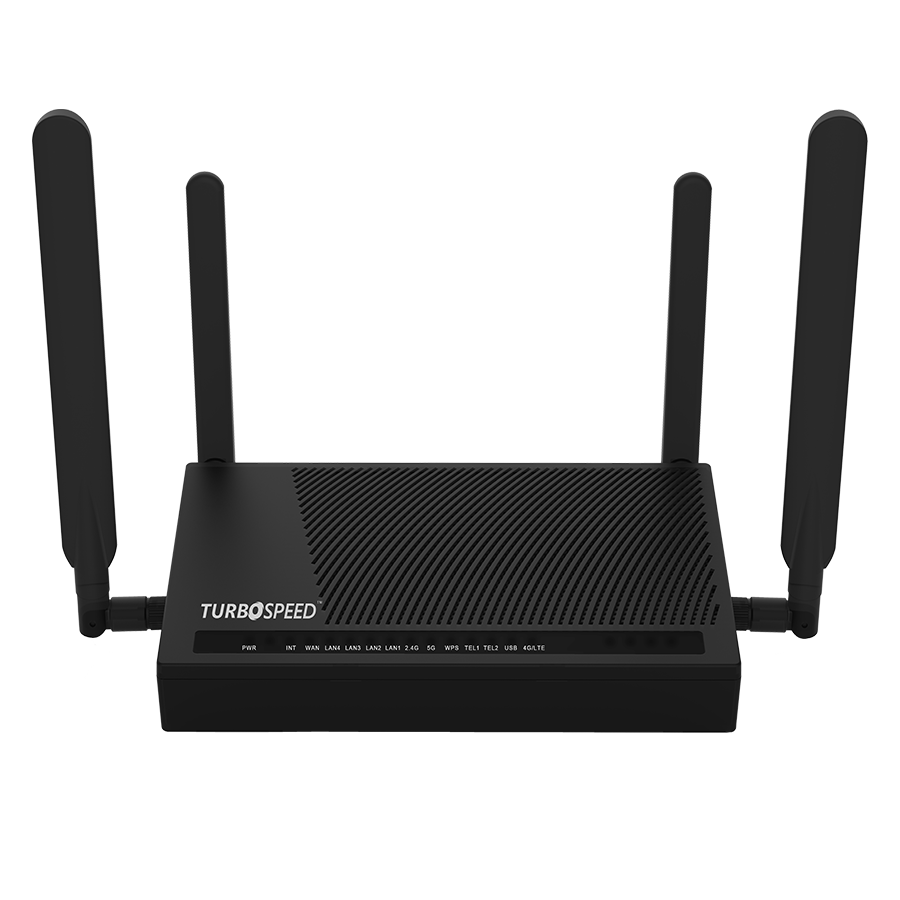

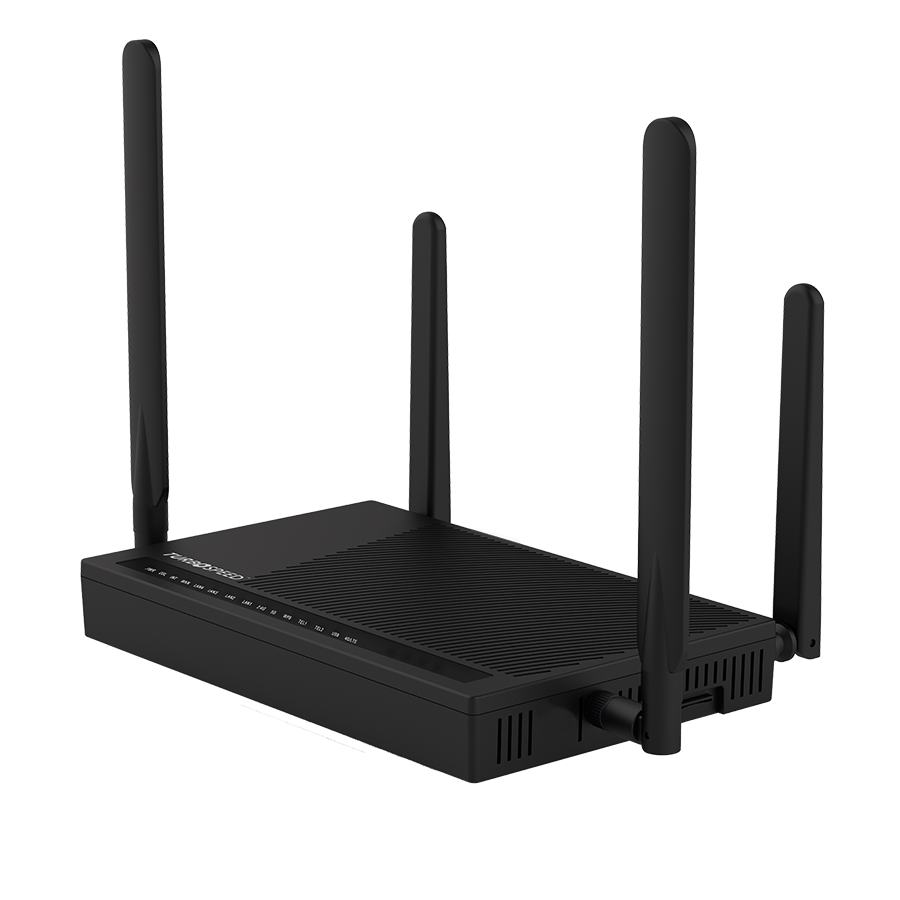

Cat.6 LTE-A Router

LR7221
AC1200 LTE-A Router
DETAIL

- High-Availability via multiWAN Auto-Failover/Fallback between LTE-A & GE-WAN ensure connectivity always-on


- Supports various VPN technologies for secure & flexible connection


- Gigabit Ethernet LAN & AC1200 WiFi supports MU-MIMO technology enhance wireless performance & experience


WAN interfaces

  • LTE SIM interface
  • 10/100/1000Mbps Ethernet interface



Multi-WAN Features

  • WAN priority configuration
  • Automatically Failover/Fallback between WAN interfaces



Advanced Dual Band Wireless

  • 802.11ac wave2 (Multi‐User)  MU‐MIMO ready
  • 5G 802.11a/n/ac support up to 866Mbps
  • 2.4G 802.11b/g/n support up to 300Mbps
  • 2T2R MIMO technology
  • WPS for easy setup
  • AP neighbors scan
  • Wireless access control
  • WiFi security: WEP, WPA, WPA2
  • Multiple‐SSID
  • Virtual AP/SSID isolation
  • WMM (WiFi Multimedia)



Network Security

  • Build‐in robust Firewall
  • NAT/NAPT
  • Stateful Packet Inspection (SPI)
  • IP/service ports/MAC packet filtering
  • URL/Domain filtering
  • DHCP server, client & relay
  • Port Forwarding
  • Virtual server
  • DMZ
  • DoS Protection
  • ALG, ACL
  • PPTP/L2TP/IPSec VPN pass‐through



Virtual Private Network (LR7281S)

  • IPSec VPN
  • L2TP over IPSec VPN server
  • L2TP over IPSec client
  • PPTP VPN server
  • PPTP VPN client
  • OpenVPN server
  • OpenVPN client



Management

  • LTE connectivity info
  • LAN/WLAN clients info
  • Interface statistics
  • ARP table
  • CWMP/TR‐069 Remote Management
  • Web‐based GUI configuration
  • Firmware upgrades through HTTP
  • Syslog
  • Configuration File Backup and Restore
  • SNMP v1/v2



Network Protocol

  • Bridged, PPPoE, IPoE
  • Static route
  • RIP v1/v2
  • MTU size adjustment
  • Port mapping
  • QoS (Quality of Service) classification
  • DNS proxy/relay,
  • DDNS
  • NTP client
  • UPnP
  • IGMP snooping & proxy
  • MLD snooping & proxy



IPv6 Ready

  • IPv6 static routing
  • IPv6 dual‐stack
  • RADVD
  • DHCP v6
  • IPv6 IP filtering
  • IPv6 MLD snooping & proxy







Physical Interface

  • 1x SIM slot for LTE
  • 1x Gigabit‐Ethernet WAN port (RJ45)
  • 4x Gigabit‐Ethernet LAN Ports (RJ‐45)
  • 1x USB
  • 1x Reset button
  • 1x WPS button
  • 1x WiFi on/off
  • 1x Power jack
  • 1x Power on/off switch



Power

  • 12V DC/1.5A



Operating Environment

  • Operating temperature: 0 – 40°C
  • Storage temperature: ‐20 – 70°C
  • Humidity: 20 – 95% non‐condensing



Ordering Information

  • LR7281‐BQ4

LTE Cat.4 – B1/2/3/5/7/8/20/38/40

WCDMA/UMTS – B1/2/5/8

  • LR7281‐Q26

LTE-A Cat.6 – B1/3/7/8/20/28/38/40/41

WCDMA/UMTS – B1/3/5/8

  • LR7281S‐BQ4

Support VPN connection

LTE Cat.4 – B1/2/3/5/7/8/20/38/40

WCDMA/UMTS – B1/2/5/8

  • LR7281S‐Q26
Support VPN connection

LTE-A Cat.6 – B1/3/5/7/8/20/28/38/40/41

WCDMA/UMTS – B1/3/5/8
