- Cost-Effective LTE solution

- Cat.4 LTE supports up to 150Mbps WAN connectivity

- N300 2x2 802.11n Wireless

- TR069/CWMP, SNMP and WebGUI management

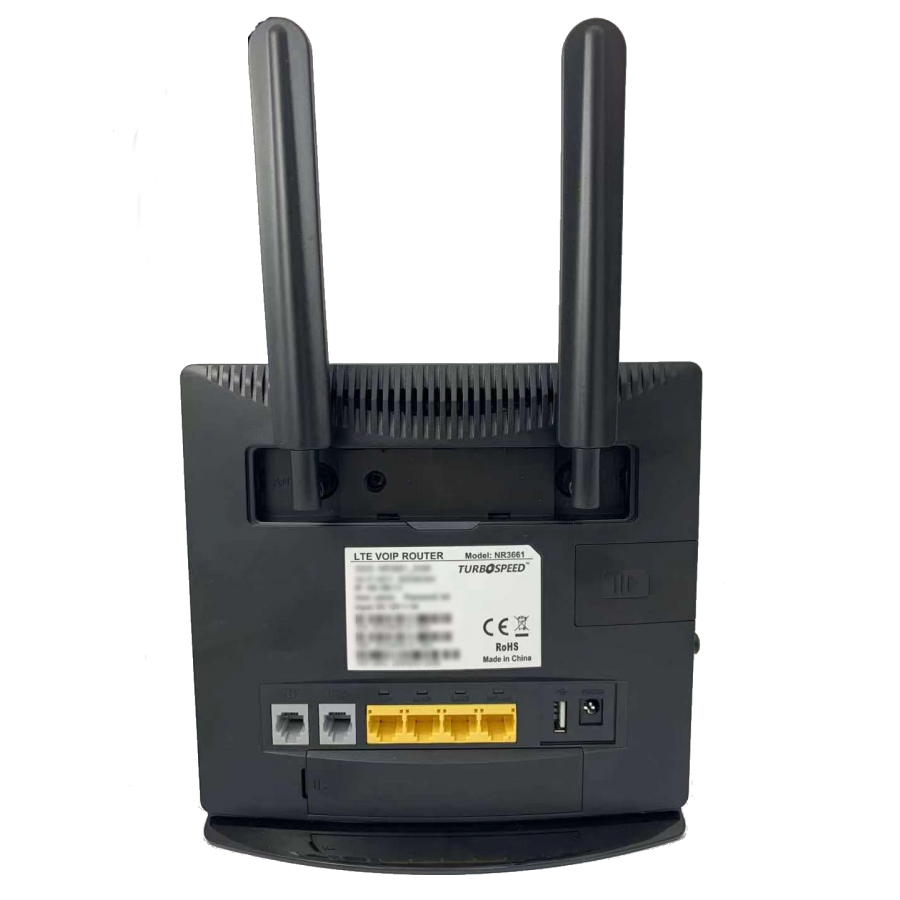

Ports

• 4*RJ45 port (4* Lan)
• 1*RJ-11(SIP)
• 2*SMA external antenna port
• 1*sim card slot

Buttons

• 1x power button
• 1x WPS button
• 1x reset button

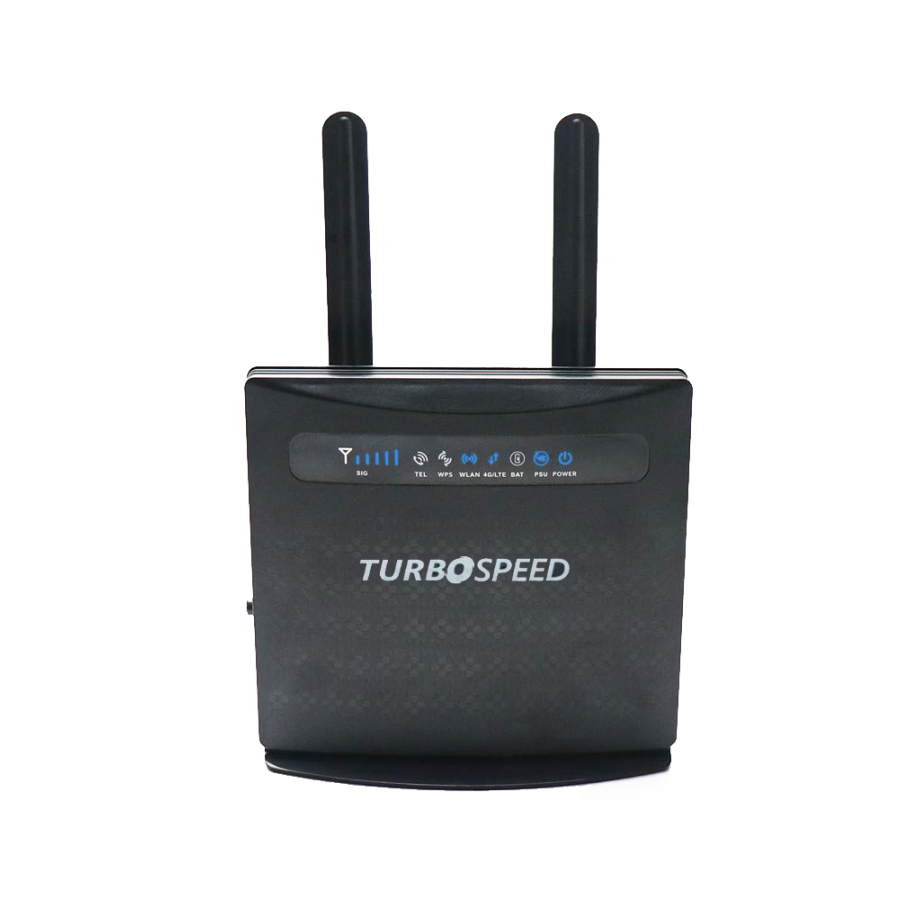

LED indication

• power
• network (Supports displaying detailed 4G network information, including network quality)
• signal (signal strength information)
• LAN

Detailed Features

• Support 2G/3G/4G network connection
• LTE-FDD download/upload: up to 150/50Mbps
• DC-HSPA+ download:  up to 43.2Mbps
• HSPA+ download: up to 21.6Mbps
• HSDPA download: up to 14.4Mbps
• HSUPA upload: up to 5.76Mbps
• TD-LTE/FDD/WCDMA/TD-SCDMA/GGE(GSM/GPRS/EGPRS)
• GSM : 850/900/1800/1900
• TD-SCDMA：Band 34/39
• WCDMA : Band 1/2/5/8
• TD-LTE : Band 40/38/ 39/41
• FDD : Band 1/3/5/8
• Support external antenna
• WLAN function, easy to expand wireless network
• WiFi Standard: IEEE 802.11b/g/n
• WiFi Rate: Highest rate 150Mbps
• WiFi RF: Highest transmit power 22dBm, sensitivity is better than -77dBm
• WiFi users: Max up to 32 users
• IP broadband band control, ensure the speed
• Support network traffic statistics
• Support local, platform firmware upgrade, configuration upgrade
• DHCP server and DHCP client
• Internet Protocol version 6 (IPv6)/Internet Protocol version 4 (IPv4) dual stack
• Security functions
• Wi-Fi protected setup (WPS)
• Support TR069
• Supports Network Address Translation (NAT) and Network Address and Port Translation (NAPT)
• Support SIM & USIM Read, write, send SMS
• With 2200mAh Li Battery
