- Cost-Effective ADSL2+ solution


- Supports carrier/operator-grade TR069/CWMP for central management


- N300 2x2 802.11n Wireless


Network Protocol

• Bridge,PPPoE,IPoE
• Static route
• RIP v1/v2
• MTU size adjustment
• Port mapping
• QoS(quality of Service)classification
• DNS proxy/relay
• DDNS
• NTP client
• UPnP
• IGMP snooping & proxy
• MLD snooping & proxy

Network Security

• Build-in robust firewall
• NAT/NAPT
• Stateful Packet Inspection(SPI)
• IP/service ports/MAC packet filtering
• URL/Domain filtering
• DHCP server , client & relay
• Port Forwarding
• Virtual server
• DMZ
• DoS Protection
• ALG , ACL
• PPTP/L2TP/IPSec VPN pass-through

Management

• LAN/WLAN clients info
• Interfaces statistics
• ARP table CWMP/TR-069 Remote Management
• Web-based GUI configuration
• Firmware upgrades through HTTP
• Syslog
• Configuration File Backup and Restore
• SNMP v1/v2

2.4 GHz Wireless

• 2.4G 802.11b/g/n support up to 300Mbps
• 2T2R MIMO technology
• WPS for easy setup
• AP Neighbors scan
• Wireless access control
• WiFi security : WEP, WPA ,WPA2 & WPA2 Mixed
• Multiple-SSID
• Virtual AP/SSID isolation
• WMM(WiFi Multimedia)

IPv6 ready

• IPv6 static routing
• IPv6 dual-stack
• RADVD
• DHCP v6
• IPv6 IP filtering
• IPv6 MLD snooping & proxy

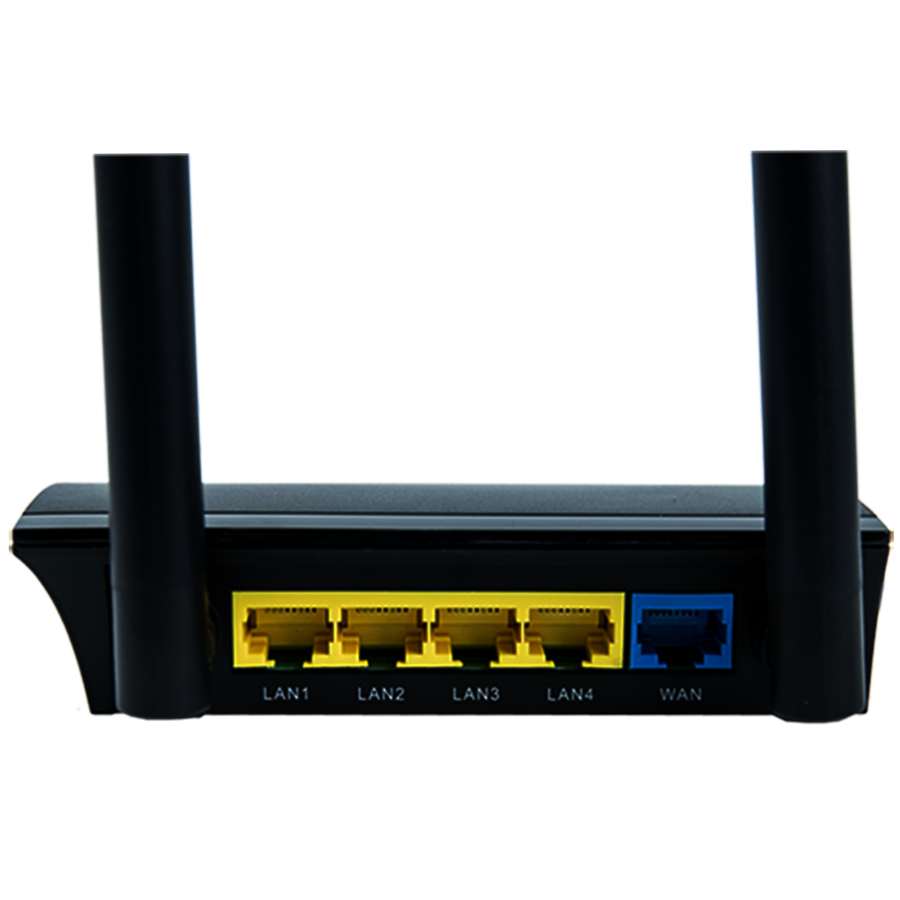

Physical Interface

• 1x Fast-Ethernet WAN port (RJ45)
• 4x Fast-Ethernet LAN port (RJ45)
• 1xReset button
• 1xWPS button
• 1xWiFi on/off
• 1xPower jack

Power

• 5V DC/1A

Operating Environment

• Operating Temperature:0-40°C
• Storage temperature:-20-70°C
• Humidty:20-95% non-condensing
