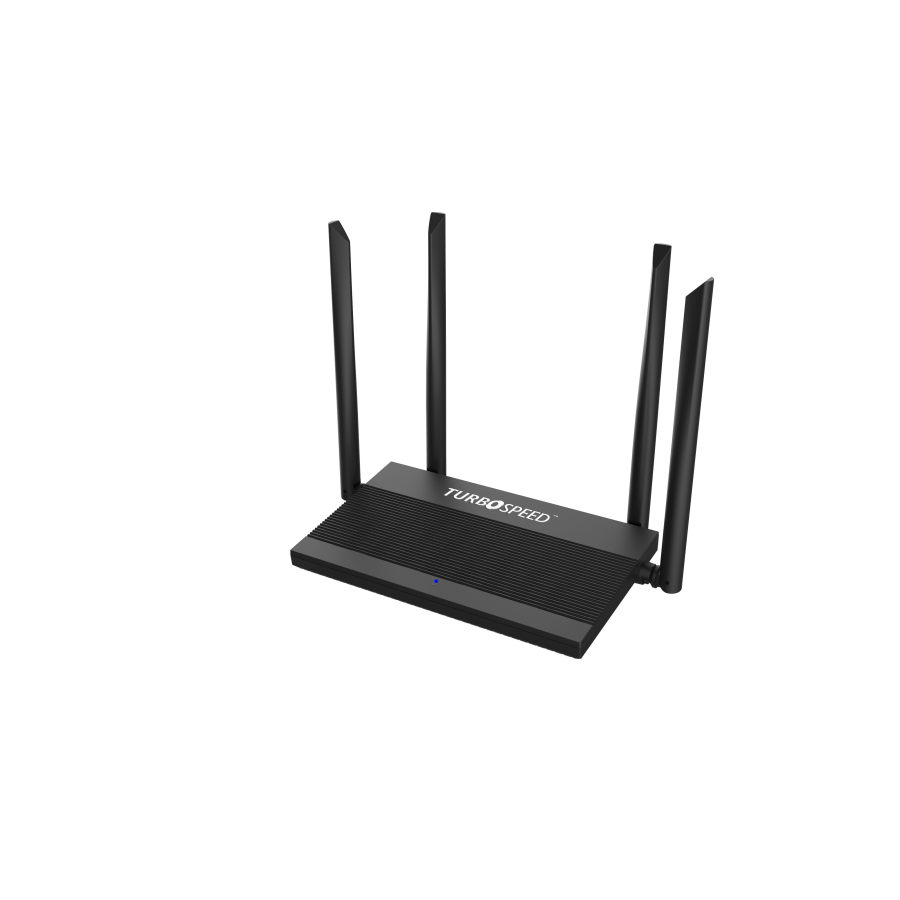

VR8281(S) VDSL2 Router Data Sheet
- The latest VDSL2 profile 35b supports up to 300Mbps WAN connectivity
- High-Availability via multiWAN Auto-Failover/Fallback between VDSL2, ADSL2+ & GE-WAN ensure connectivity always-on
- Supports various VPN technologies for secure & flexible connection
- Gigabit Ethernet LAN & AC1200 WiFi supports MU-MIMO technology enhance wireless performance & experience
WAN interfaces
- VDSL2/ADSL2+ interface
- 10/100/1000Mbps Ethernet interface
Multi-WAN Features
- WAN priority configuration
- Automatically Failover/Fallback between WAN interfaces
DSL
- VDSL2 profile 35b Ready (VPR8221)
- G.993.2: 8a/b/c/d, 12a/b, 17a, 30a
- PhyR
- Virtual Noise
- ANSI T1.413 Issue 2
- G.992.1 (G.dmt)
- G.992.2 (G.lite)
- G.992.3 (ADSL2/G.bis)
- G.992.5 (ADSL2+)
- 993.2(VDSL2)
- 998.4(G.inp)
- 993.5(vectoring)
Network Protocol
- Bridged, PPPoE, IPoE
- Static route
- RIP v1/v2
- MTU size adjustment
- Port mapping
- QoS (Quality of Service) classification
- DNS proxy/relay,
- DDNS
- NTP client
- UPnP
- IGMP snooping & proxy
- MLD snooping & proxy
Network Security
- Build‐in robust firewall
- NAT/NAPT
- Stateful Packet Inspection (SPI)
- IP/service ports/MAC packet filtering
- URL/Domain filtering
- DHCP server, client & relay
- Port Forwarding
- Virtual server
- DMZ
- DoS Protection
- ALG, ACL
- PPTP/L2TP/IPSec VPN pass‐through
Management
- LAN/WLAN clients info
- Interfaces statistics
- ARP table
- CWMP/TR‐069 Remote Management
- Web‐based GUI configuration
- Firmware upgrades through HTTP
- Syslog
- Configuration File Backup and Restore
- SNMP v1/v2
Virtual Private Network
- IPSec VPN
- L2TP over IPSec
- PPTP Server/Client
- Authentication type: PAP/CHAP/MS CHAP v2
- Encryption Algorithm: AES/3DES/DES
Advanced Dual Band Wireless
- 802.11ac wave2 (Multi‐User) MU‐MIMO ready
- 5G 802.11a/n/ac support up to 866Mbps
- 2.4G 802.11b/g/n support up to 300Mbps
- 2T2R MIMO technology
- WPS for easy setup
- AP Neighbors scan
- Wireless access control
- WiFi security: WEP, WPA, WPA2 & WPA2 Mixed
- Multiple‐SSID
- Virtual AP/SSID isolation
- WMM (WiFi Multimedia)
IPv6 ready
- IPv6 static routing
- IPv6 dual‐stack
- RADVD
- DHCP v6
- IPv6 IP filtering
- IPv6 MLD snooping & proxy
Physical Interface
- 1x DSL port (RJ‐11)
- 1x Gigabit‐Ethernet WAN port (RJ‐45)
- 4x Gigabit‐Ethernet LAN Ports (RJ‐45)
- 1x Reset button
- 1x WPS button
- 1x WiFi on/off
- 1x Power jack
- 1x Power on/off switch
Power
- 12V DC/1A
Operating Environment
- Operating temperature: 0 – 40 ° C
- Storage temperature: ‐20 – 70 ° C
- Humidity: 20 – 95% non‐condensing
