2.4G/5G Dual-Band Series

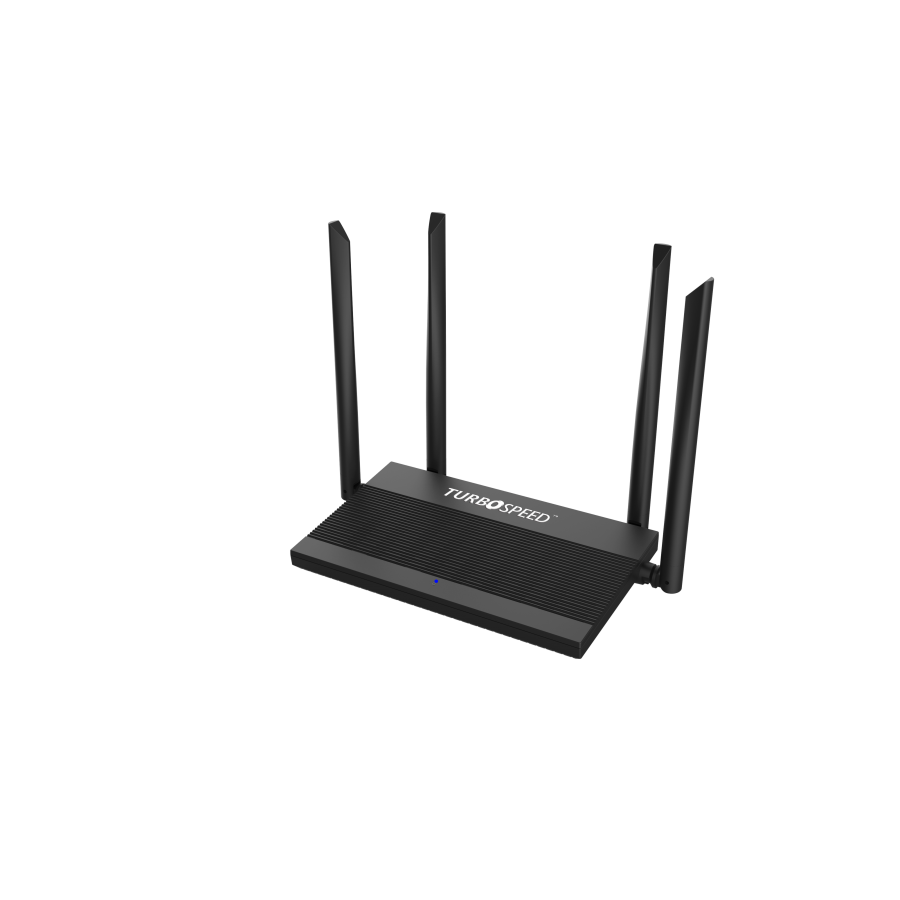

WR6221
FTTH AC1200 Wireless Router
DETAIL

- Supports carrier/operator-grade TR069/CWMP for central management


- AC1200 WiFi supports MU-MIMO technology enhance wireless performance & experience


- 4 ports Gigabit Ethernet LAN


Network Protocol

  • PPPoE,IPoE
  • Static Routing
  • MTU size adjustment
  • Port mapping
  • QoS Bandwidth control
  • DNS relay,
  • DDNS
  • NTP client
  • UPnP
  • IGMP snooping & proxy



Network Security

  •  Build-in robust firewall
  •  NAT/NAPT
  •  Stateful Packet Inspection (SPI)
  •  IP/MAC filtering
  •  Domain filtering
  •  DHCP server,client
  •  Port Forwarding
  •  Port Triggering
  •  Virtual server
  •  DMZ
  •  PPTP/L2TP/IPSec VPN pass-through



Management

  •  CWMP/TR-069 Remote Management
  •  Web-based GUI configuration
  •  Firmware upgrades through HTTP
  •  Syslog
  •  Configuration File Backup and Restore
  •  SNMP v1/v2



Advanced Dual Band Wireless

  •  802.11ac wave2 (Multi‐User)  MU‐MIMO ready
  •  5G 802.11a/n/ac support up to 867Mbps
  •  2.4G 802.11b/g/n support up to 300Mbps
  •  2T2R MIMO technology
  •  WPS for easy setup
  •  Wireless access control
  •  WiFi security: WEP, WPA, WPA2 & WPA2 Mixed
  •  Multiple-SSID
  •  WMM (WiFi Multimedia)



IPv6 ready

  •  IPv6 static routing
  •  IPv6 dual-stack
  •  RADVD
  •  DHCPv6
  • IPv6 IP filtering
  • IPv6 MLD snooping & proxy





Physical Interface

  •  1x Gigabit-Ethernet WAN port (RJ45)
  •  4x Gigabit-Ethernet LAN Ports (RJ-45)
  •  1x Reset button
  •  1x WPS button
  •  1x WiFi on/off
  •  1x Power jack
  • 1x Power on/off switch



Power

  • 12V DC/1A



Operating Environment

  • Operating temperature: 0 – 40°C
  • Storage temperature: -20 – 70°C
  • Humidity: 20 – 95% non-condensing
