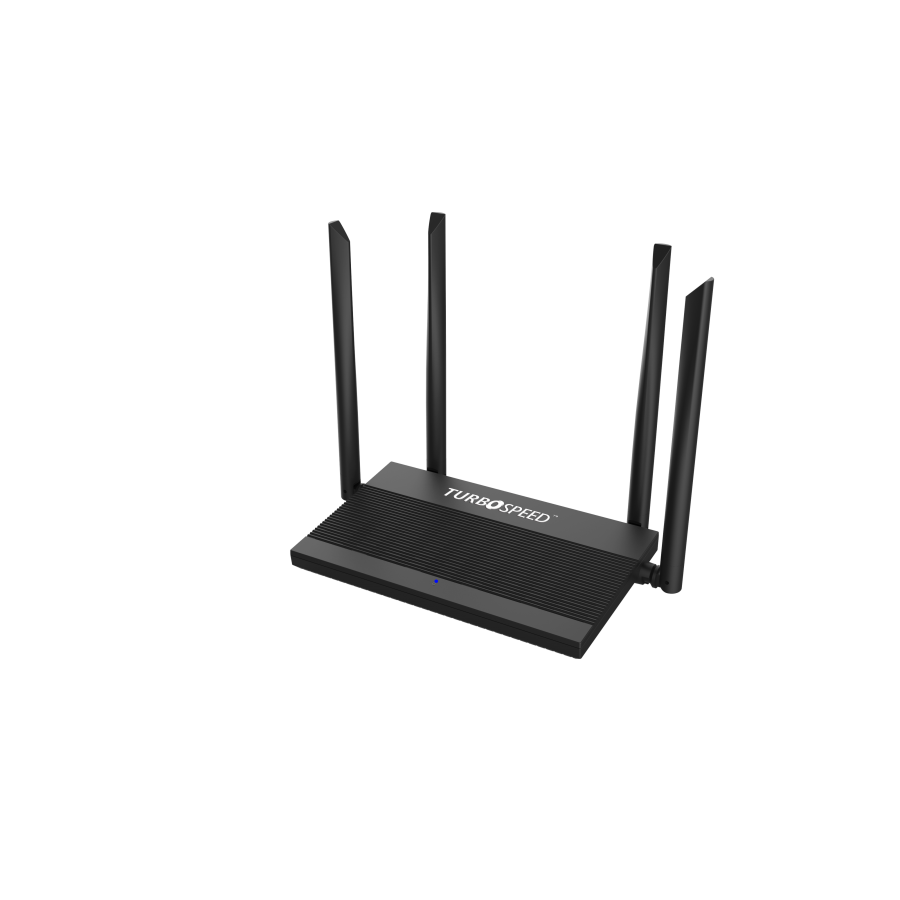

WR7221(S)
AC1200 Wireless Router
DETAIL

- Dual-core 1GHz processor


- Supports carrier/operator-grade TR069/CWMP for central management


- Gigabit Ethernet LAN & AC1200 WiFi supports MU-MIMO technology enhance wireless performance & experience


Network Protocol

  • Bridged , PPPoE , IPoE
  • Static route
  • RIP v1/v2
  • MTU size adjustment
  • QoS(quality of Service)classification
  • DNS proxy/relay
  • DDNS
  • NTP client
  • UPnP
  • IGMP snooping & proxy
  • MLD snooping & proxy



Network Security

  • Build-in robust firewall
  • NAT/NAPT
  • Stateful Packet Inspection(SPI)
  • IP/service ports/MAC packet filtering
  • URL/Domain filtering
  • DHCP server , client & relay
  • Port Forwarding
  • Virtual server
  • DMZ
  • DoS Protection
  • ALG , ACL
  • PPTP/L2TP/IPSec VPN pass-through



Management

  • LAN/WLAN clients info
  • Interfaces statistics
  • ARP table
  • CWMP/TR-069 Remote Management
  • Web-based GUI configuration
  • Firmware upgrades through HTTP
  • Syslog
  • Configuration File Backup and Restore
  • SNMP v1/v2



Advanced Dual Band Wireless

  • 802.11ac wave2 ready
  • Support(Multi-User)MU-MIMO technology
  • 5G 802.11a/n/ac support up to 866Mbps
  • 2.4G 802.11b/g/n support up to 300Mbps
  • 2T2R MIMO technology
  • WPS for easy setup
  • AP Neighbors scan
  • Wireless access control
  • WiFi security : WEP, WPA ,WPA2 & WPA2 Mixed
  • Multiple-SSID
  • Virtual AP/SSID isolation
  • WMM(WiFi Multimedia)



IPv6 ready

  • IPv6 static routing
  • IPv6 dual-stack
  • RADVD
  • DHCP v6
  • IPv6 IP filtering
  • IPv6 MLD snooping & proxy



Physical Interface

  • 1x Gigabit-Ethernet WAN port (RJ45)
  • 4x Gigabit-Ethernet LAN port (RJ45)
  • 1xReset button
  • 1xWPS button
  • 1xWiFi on/off
  • 1xPower jack
  • 1xPower on/off switch



Power

  • 12V DC/1A



Operating Environment

  • Operating Temperature:0-40°C
  • Storage temperature:-20-70°C
  • Humidty:20-95% non-condensing
